AudioScience ASI6622 PCIe Broadcast Multichannel AES Digital & Balanced Analog [Used]

No XLR cable set is included, but I usually have the BOB1024 breakout boxes available (listed separately) which offer a convenient and robust means of interfacing to the card's inputs and outputs.

Description

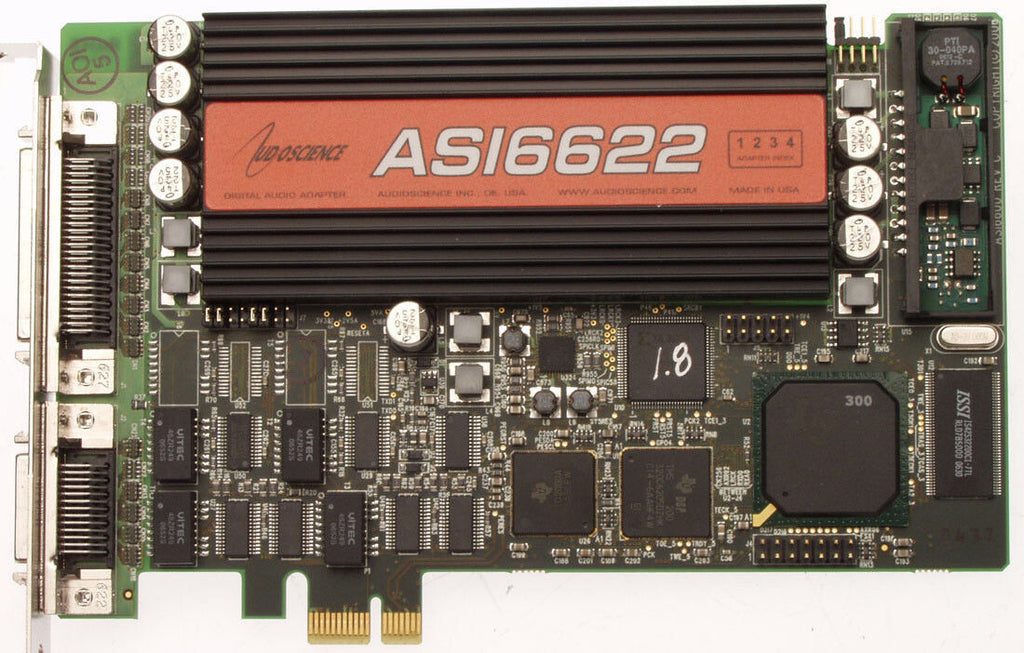

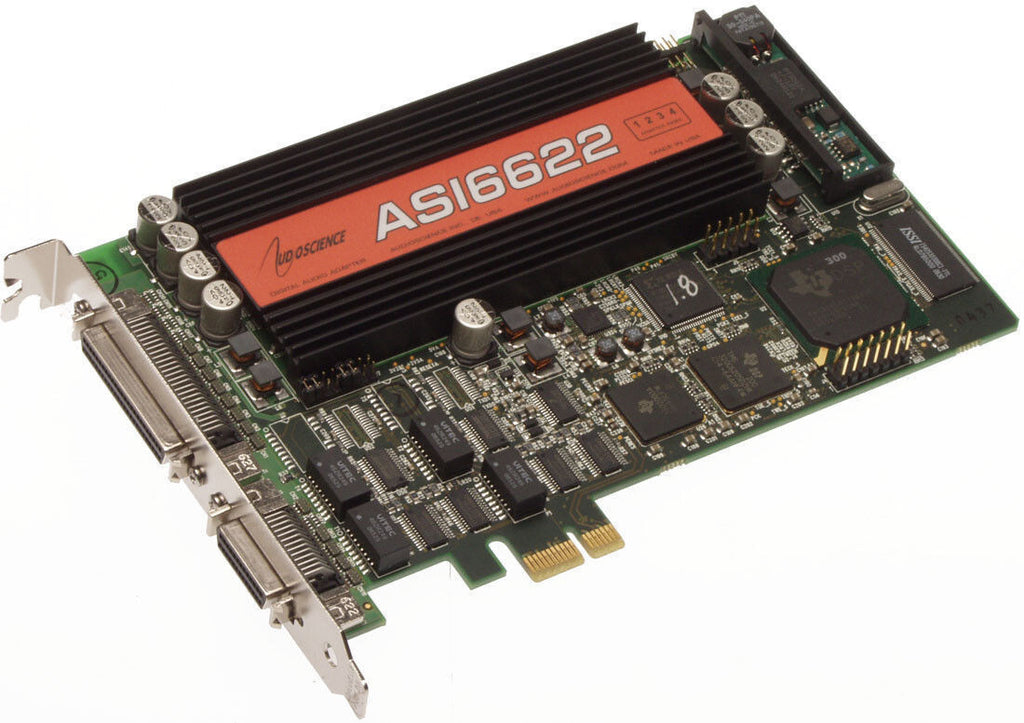

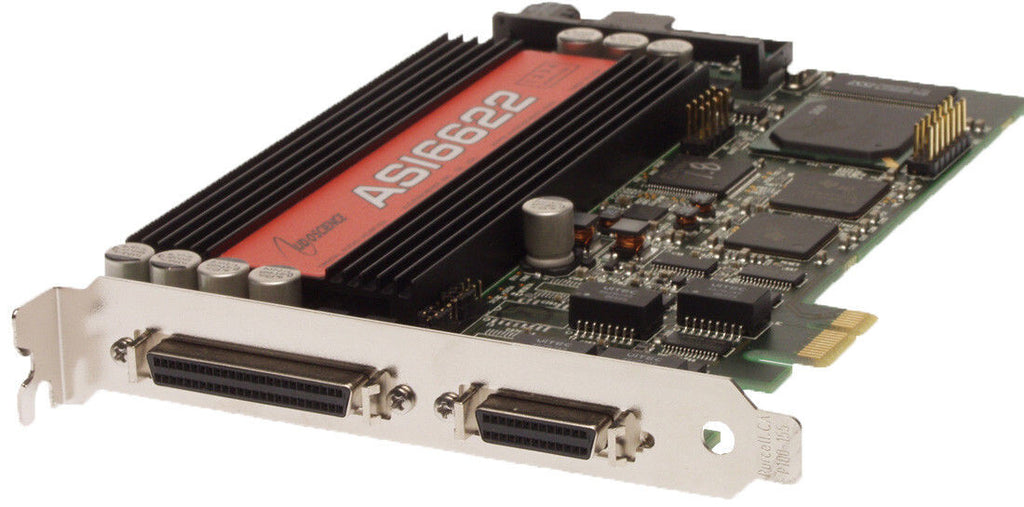

The ASI6622 is a professional PCI-Express sound card designed for use in radio broadcast automation. Providing 6 play streams that are mixed to 2 balanced stereo outputs and 4 record stream fed from 2 balanced stereo input, the ASI6622 features AudioSciences unique "anything to anywhere" mixing and routing.

The ASI6622 provides a balanced analog inputs and outputs. The maximum analog input and output level is +24dBu.

Usually Sells for $2,495

A choice of uncompressed PCM, MPEG layer 2 and MP3 is available for both recording and playback. All compression is handled by an on-board floating point DSP, allowing the host computer to focus on other tasks.

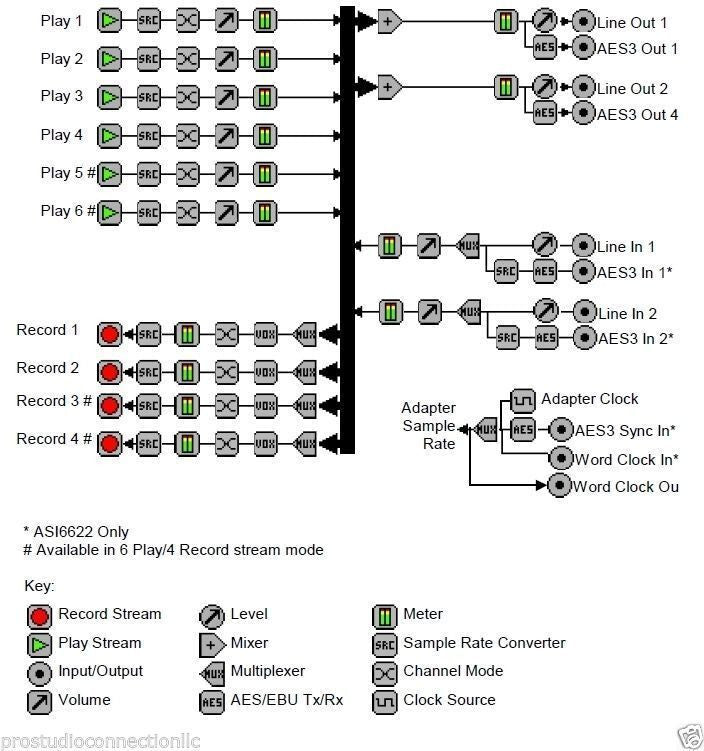

ASI6622 functionality includes MRX multi-rate mixing technology which allows streams of different sample-rates and formats to be mixed digitally. TSX time scaling allows compression/expansion of any or all playback streams in real time with no change in pitch.

Features

• 6 streams of playback into 2 stereo outputs
• 4 stereo streams of record from 2 stereo inputs
• PCM, MPEG-L2 and MP3 formats with sample rates to 96kHz
• MRX technology supports mixing of multiple formats and rates
• TSX time scaling by up to +/-20%25
• Balanced stereo analog I/O with levels to +24dBu
• 24bit ADC and DAC with 110dB SNR and 0.0015%25 THD+N
• AES/EBU I/O with sample rate converters on all inputs
• Dedicated AES/EBU and Word clock Sync input
• Short length PCI card format (6.6 inches/168mm)
• Up to 4 cards in one system
• Windows and Linux software drivers available
