AudioScience BOB1038 Break Out Box 8 Stereo In/Out, Analog, AES/EBU GPIO - Used

( 287391028458) )

$197.00 ~~$294.00~~ (2 available in stock)

Lightly Used • Very Good Condition • All Connector Blocks Included • Suits Balanced Analog OR AES Digital Audio Signals

Item is lightly used and complete with a full set of connector blocks. No 68 Pin VHDCI Interconnection Cable is included.

Features

1 RU rackmount
Eight stereo inputs and Eight Stereo outputs
Balanced analog or AES/EBU

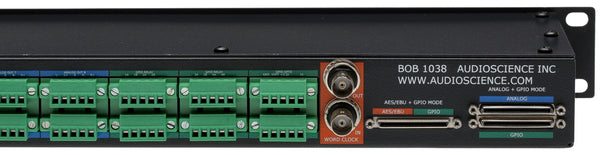

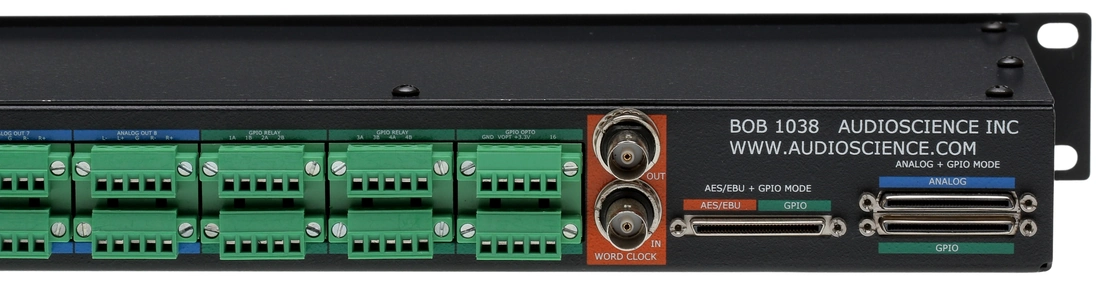

Word clock input/output on BNC connectors
16 GPIO inputs and 4 GPIO outputs
3.81mm locking terminal block connectors
Compatible with AudioScience ASI5500/6500 series PCI sound cards
Compatible with AudioScience ASI5600/6600 series PCIe sound cards
Compatible with AudioScience ASI5700/6700 series PCIe sound cards

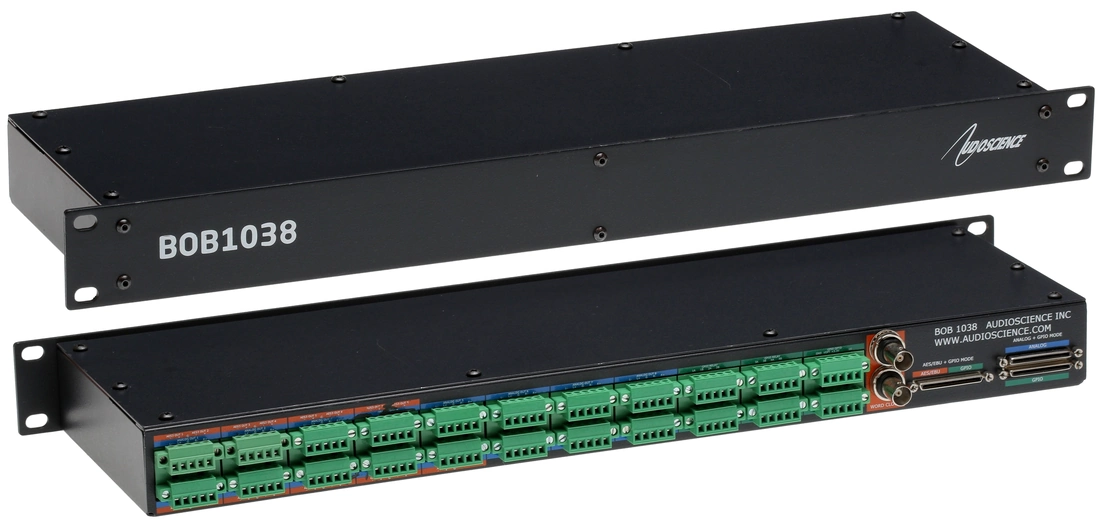

https://www.prostudioconnection.net/2606/C1020386c.png

Description

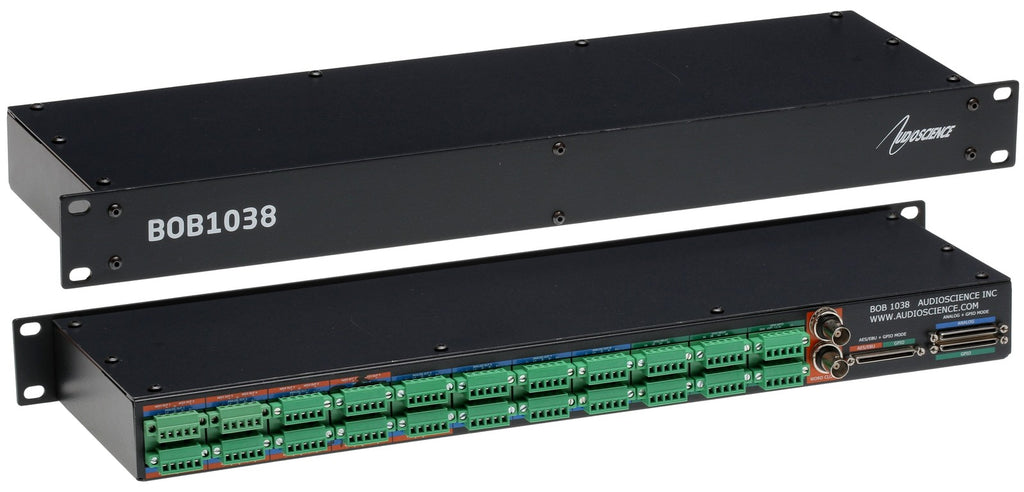

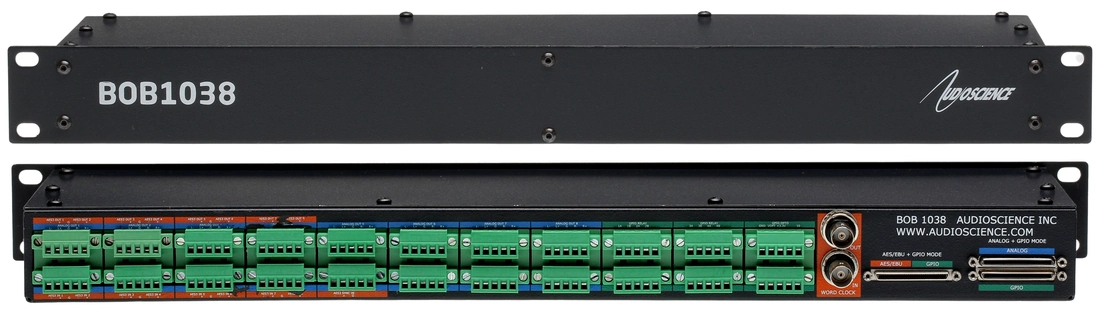

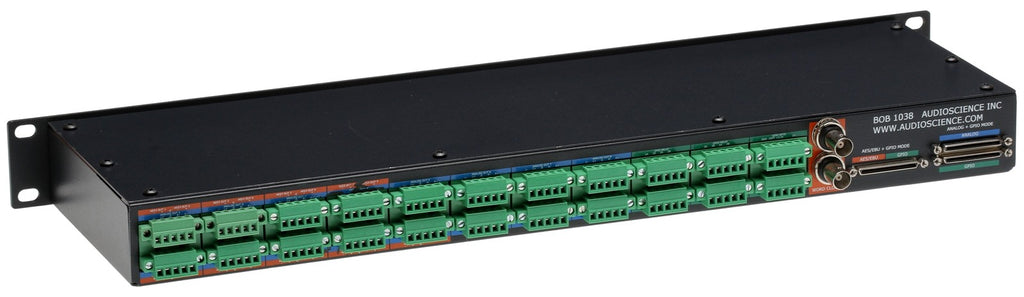

The BOB1038 is a breakout box for AudioScience sound cards. It can be operated as either an analog breakout or AES/EBU digital breakout.

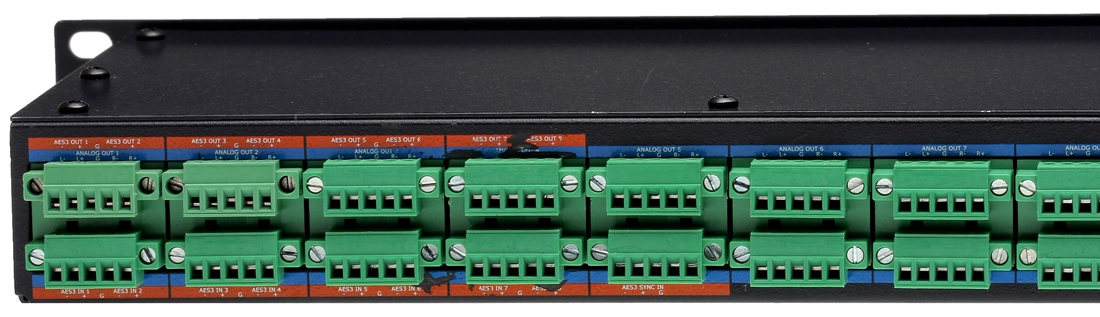

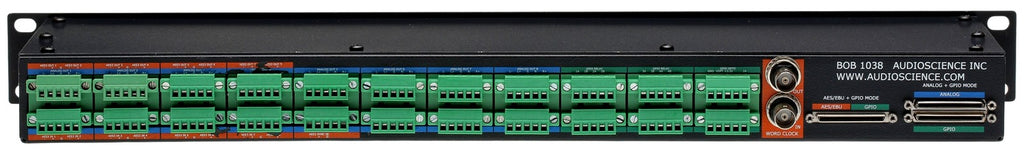

All I/O is balanced on 3.81mm terminal block connectors. Connections to the audio adapter are via a 68pin VHDCI SCSI type connector for both analog and AES/EBU.

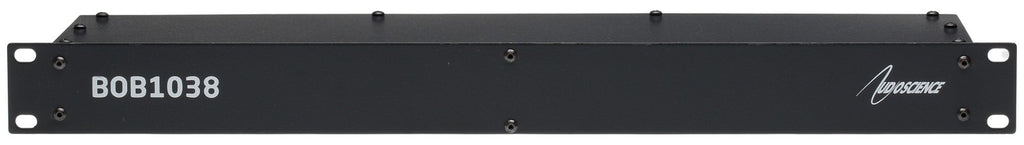

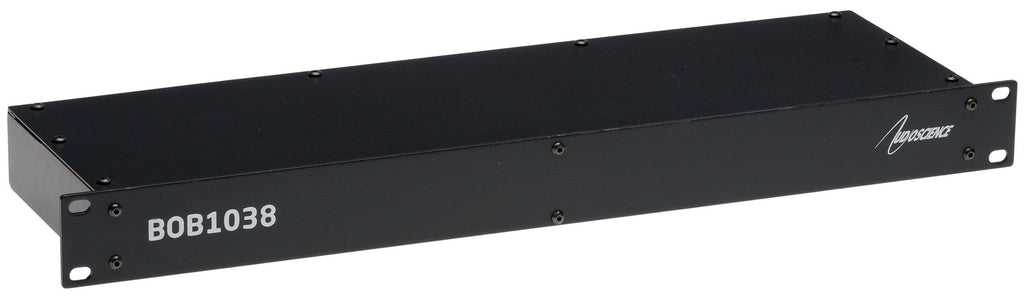

The BOB1038 is 1RU; 19" W x 5.5" D x 1.75" H (482.6mm W x 139.7mm D x 44.5mm H).
AudioScience cards that are supported include the ASI5500/5600, ASI6500/6600, ASI5700/6700 series.
The BOB1038 ships with 2 CBL4001 cables for connecting to the ASI5700/ASI6700 series of cards.
NOTE: The BOB1038 can operate in Analog OR Digital (AES/EBU) mode, but not both at the same time.
