AudioScience BOB1038 Break Out Box w/ CBL4001 8 Stereo In/Out Analog or AES/EBU
( 366704043739) )
Regular price
$300.00
Sale price
$441.00
(1 available in stock)

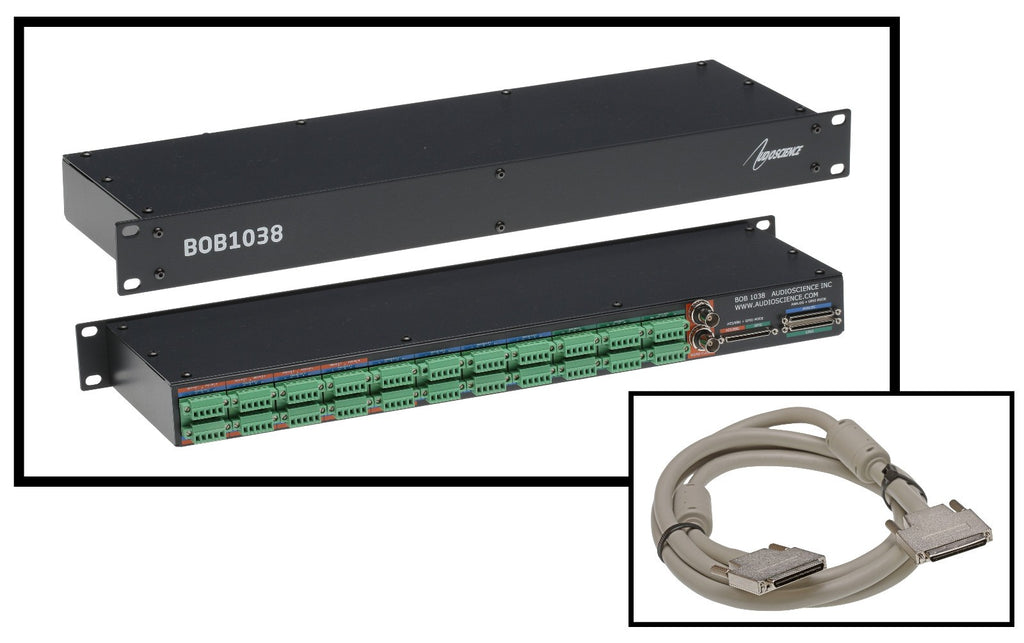

Item is new old stock. Includes one CBL4001 Interconnection Cable as shown.
Features
- 1 RU rackmount
- Eight stereo inputs and Eight Stereo outputs
- Balanced analog or AES/EBU

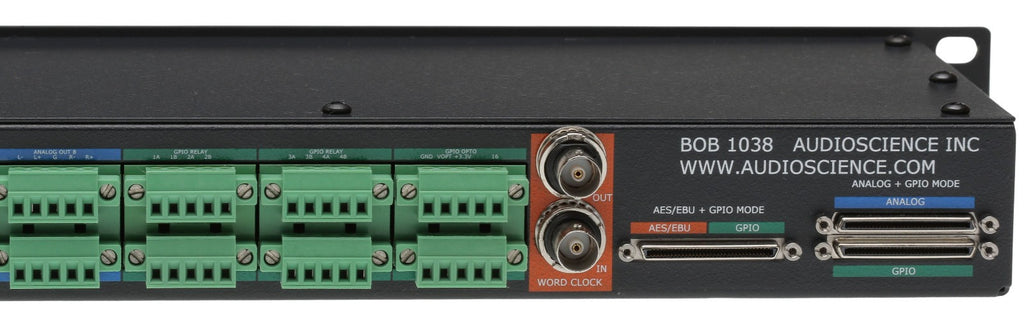

- Word clock input/output on BNC connectors
- 16 GPIO inputs and 4 GPIO outputs

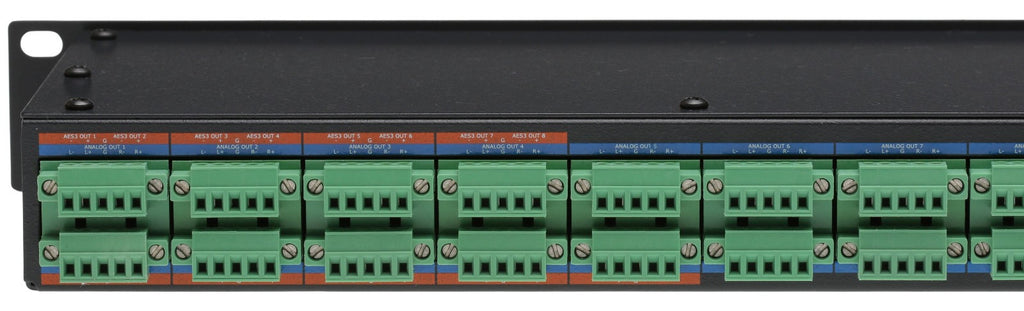

- 3.81mm locking terminal block connectors
- Compatible with AudioScience ASI5700/6700 series PCIe sound cards
Description

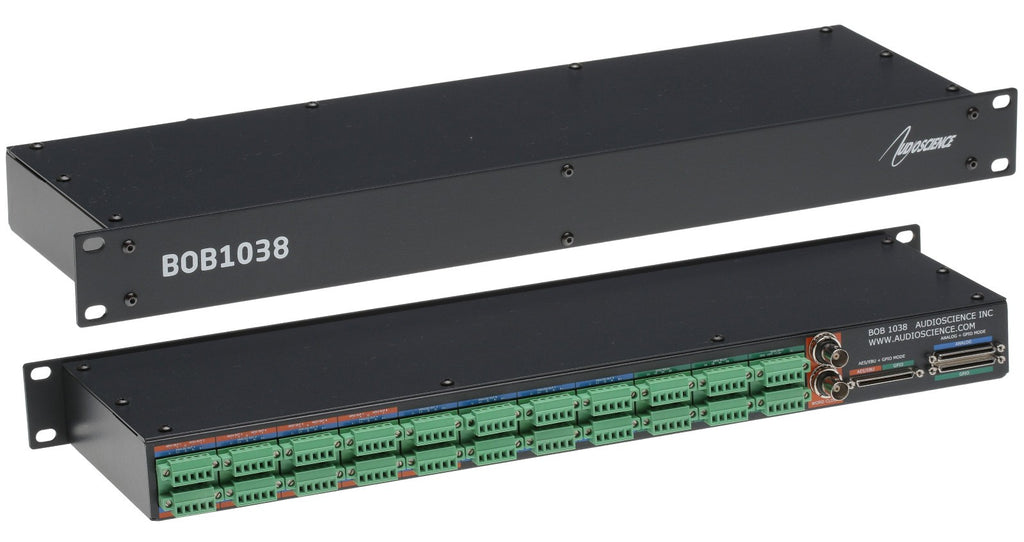

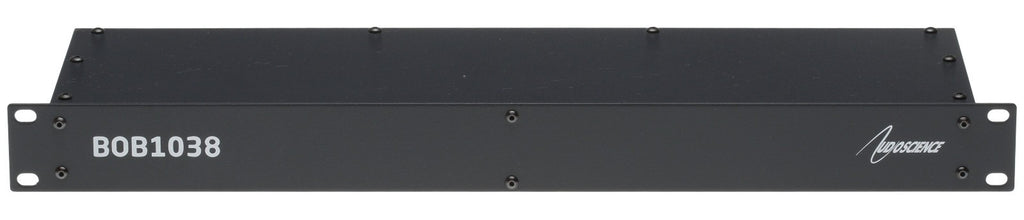

- The BOB1038 is a breakout box for AudioScience sound cards. It can be operated as either an analog breakout or AES/EBU digital breakout.

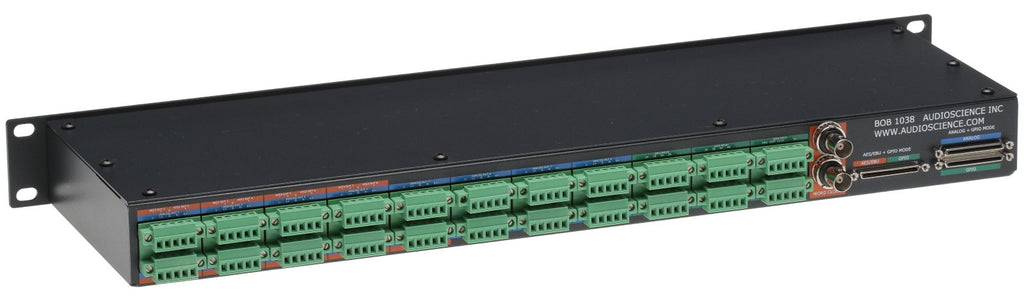

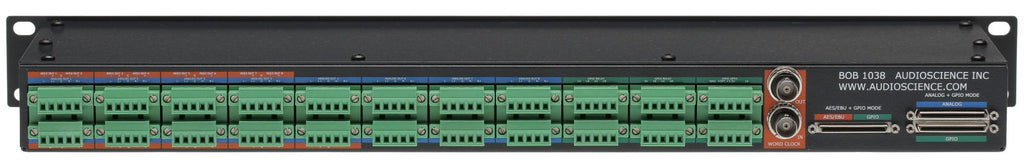

- All I/O is balanced on 3.81mm terminal block connectors. Connections to the audio adapter are via a 68pin VHDCI SCSI type connector for both analog and AES/EBU.

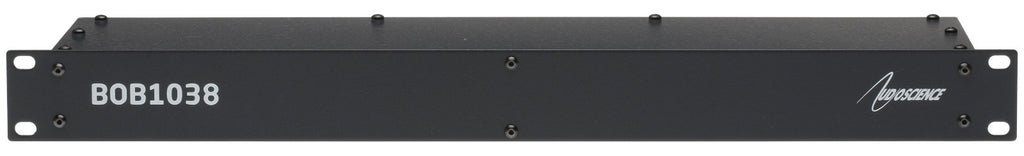

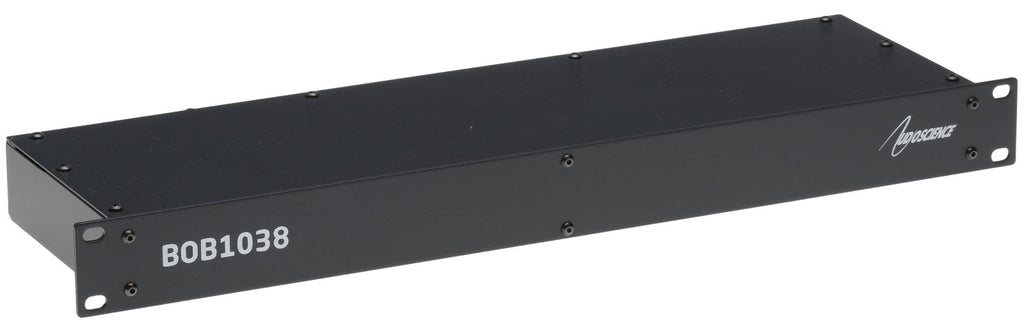

- The BOB1038 is 1RU; 19" W x 5.5" D x 1.75" H (482.6mm W x 139.7mm D x 44.5mm H).
- NOTE: The BOB1038 can operate in Analog OR Digital (AES/EBU) mode, but not both at the same time.

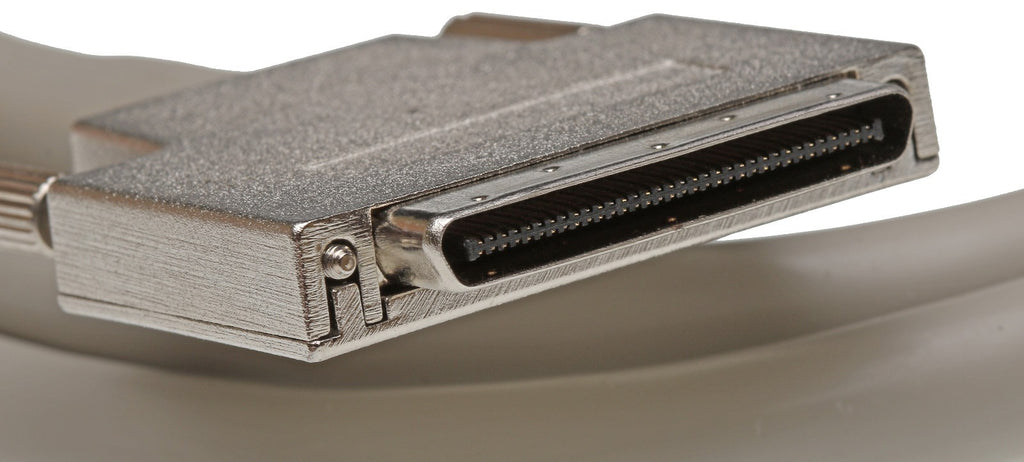

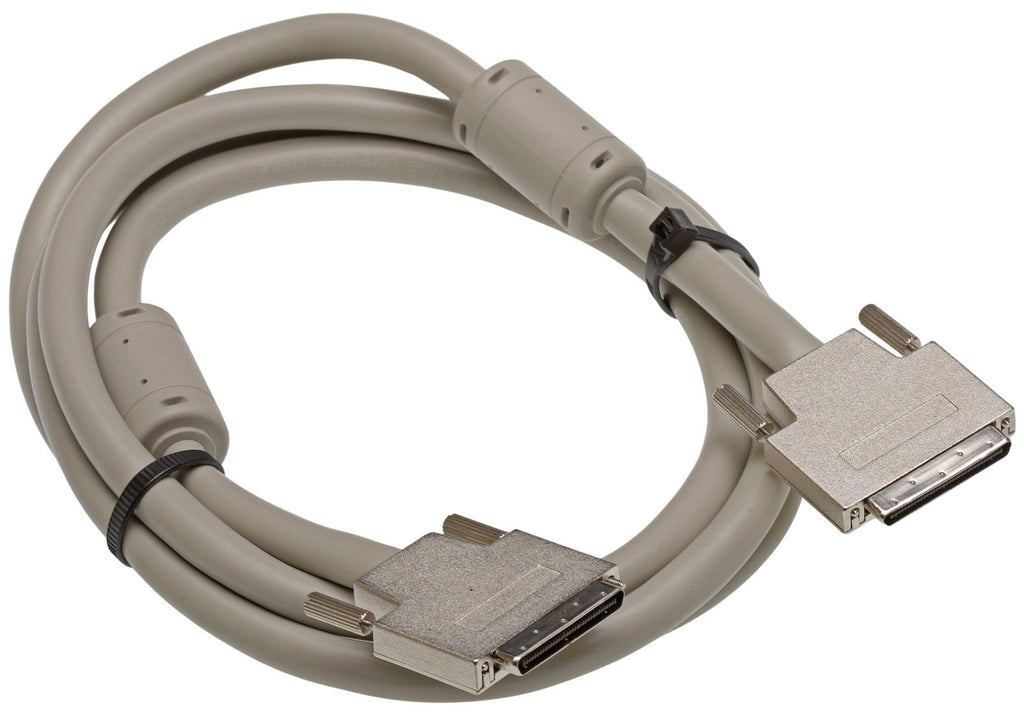

Cable is approx 6 feet long and with a male VHDCI
connector at both ends. This is most commonly used to connect
a 57XX or 67XX series Audioscience sound card to a BOB1038
breakout box.
