Wheatstone Vorsis M-1 AES Digital 96KHz Voice Processor Preamp Compressor M1

Tested/Guaranteed • Good Condition • Fully Working • 24bit/96KHz Voice Processor • AES Digital & Balanced Analog Outputs • Compressor • Limiter • EQ

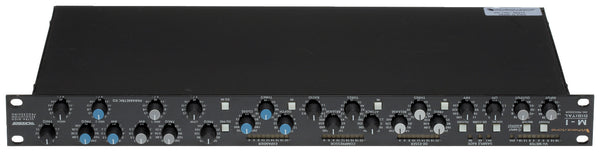

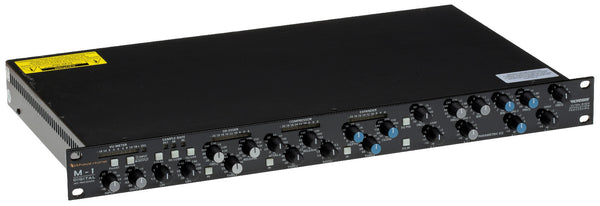

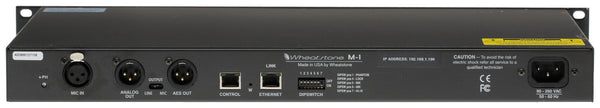

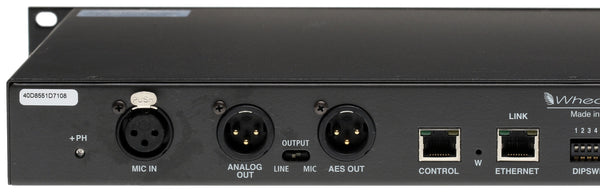

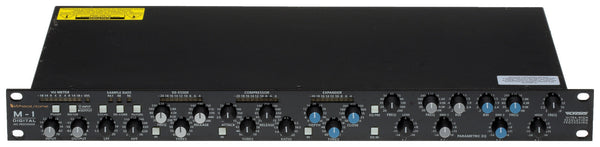

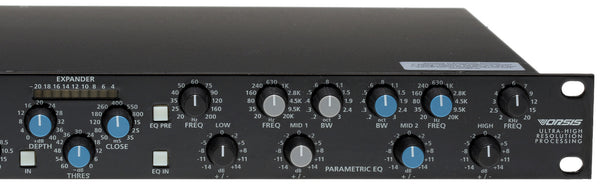

Photos show the actual item for sale

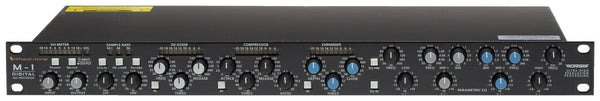

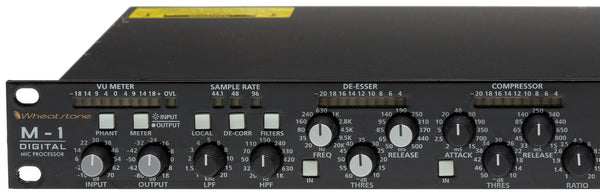

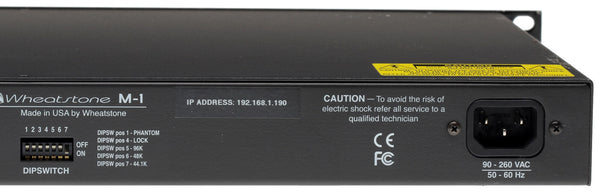

Here's a good cosmetic condition Vorsis M-1 Preamp/Speech processor. The front panel is in close to mint condition and the other surfaces show signs of light wear without any significant scratches or dents. I believe that the unit was previously deployed in a studio in which smoking was permitted. I have cleaned the outside fully to minimize the olefactory effects of this, but there may still be some low level residual detectable odor which should reduce as any remaining volatile compounds gradually vaporize.  All functions can be accessed via the front panel, as well as via a PC based remote control application. (I can provide the install file if required). The control app allows for instant recall of different presets and the front panel control functionality can be locked out if required. The remote control works via a static IP address so you will need some familiarity with Windows IP networking probably to set that up. If the unit's front panel is locked upon receipt press the LOCAL button and hold for four seconds. Unit ships set to the IP address default value of 192.168.1.190. The User Manual may be downloaded from https://www.prostudioconnection.net/1603/Vorsis_M-1_MANUAL.pdf.

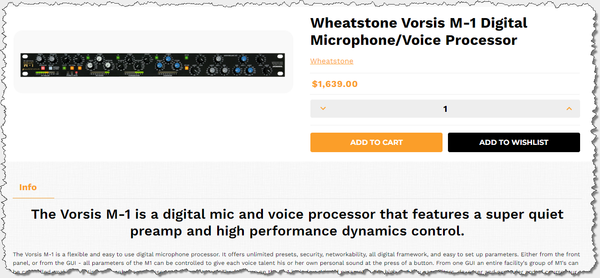

Usually Sells for $1,639

Description

• All-digital processing
• Super-Quiet (SQ) mic preamp
• Proprietary Vorsis dynamics processing
• Unlimited presets, security and networkability

No matter how quickly technology evolves, you can always count on Wheatstone to deliver the digital goods to keep you on track. This flexible digital mic processor offers presets, security, networkability and easy-to-set-up parameters. Either from the front panel, or from the PC graphic interface, you can control all individual parameters to give each voice talent his or her own sound with just a simple press of a button.

Full details may be obtained from the User Manual at
https://www.prostudioconnection.net/1603/Vorsis_M-1_MANUAL.pdf

Features include an extremely low noise microphone preamp with phantom power, 44.1, 48 or 96 kHz output sample rates, 4 bands of parametric EQ, high and low pass filters, and a fully adjustable compressor, de-esser, and expander. The M1 also offers real-time TCP/IP remote control. Boasting a 24-bit sample rate converter, AES3 digital and 24-bit resolution analog outputs, it comes loaded with factory designed presets, and makes it easy to design your own.

Features:

• Control of all audio parameters

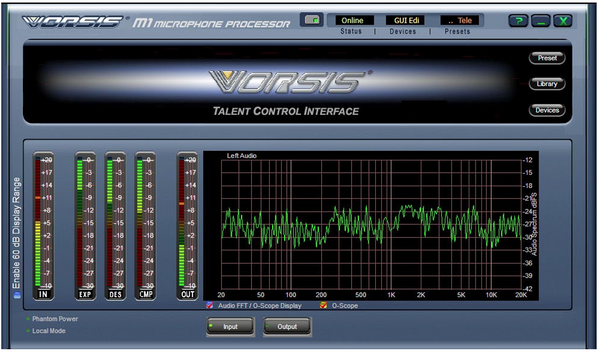

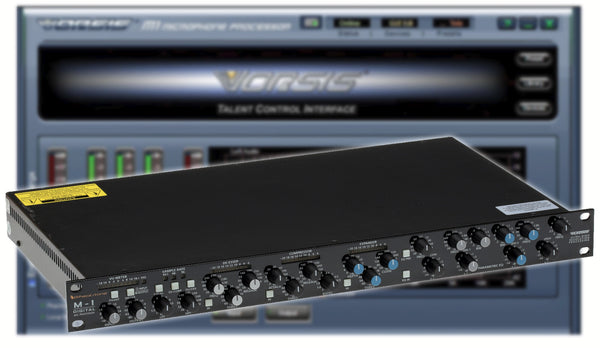

• Optional Intuitive PC graphical user interface (GUI); TCP/IP Ethernet remote control
• High quality, low noise microphone preamp
• Phantom power
• LED Metering: In/Out, De-esser, Compression, Expansion
• 44.1, 48 or 96 kHz AES3 output sample rates
• 24-bit A/D, D/A converters
• Preset storage/recall via GUI
• Variable frequency De-esser Voice phase scrambler
• Adjustable compression, Downward expansion, Output limiter
• EQ: two-band parametric plus variable high and low shelving, Tunable high and low pass filters
• FFT voice energy display via GUI
• Quick save/compare function
• Takes up only one rack space
